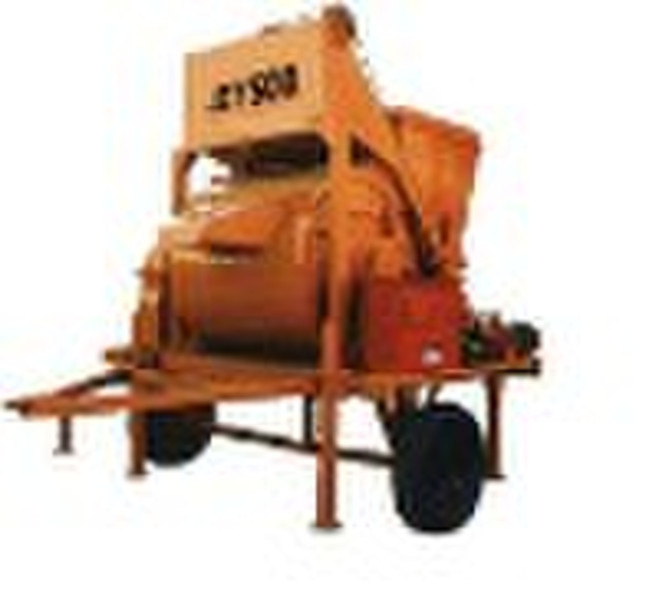

JDC350 500 concrete mixer

JDC series concrete mixer is the kind of single-horizontal-shaft forced type concrete mixer combined machinery and electric together. Its mixing system is transmitted safely by circular gear. Feeding mechanism employs the winding motor, safe and steady. Shedding mechanism employs the worm-gear case spurring the mixing motor to whirl, discharging quickly and clean. This series mixer and mix all kinds of concrete, mortar at any mixing proportion, and are suitable for any middle and small size projects. It both can use separately and also can marry up with batcher to build a plain concrete mixing plant.ItemModelJDC350JDC500Discharging Capacity (L)350500Charging Capacity (L)560800Production Capacity(m3/h)18-2125-30Max Aggregate Diameter60/4080/60Mixer Shaft Rev Speed (r/min)2824Total Power (kw)23.528Mixing Time (s)30s30Dimension (mm)2528×2340×28502600×2789×3200Tow Speed (Tertiary Road)20km/h18 km/hHopper Winding Speed (m/min)2020Water Supply MethodTime Relay Control waterpumpTime Relay Control water pumpTotal Weight (kg)33604000
