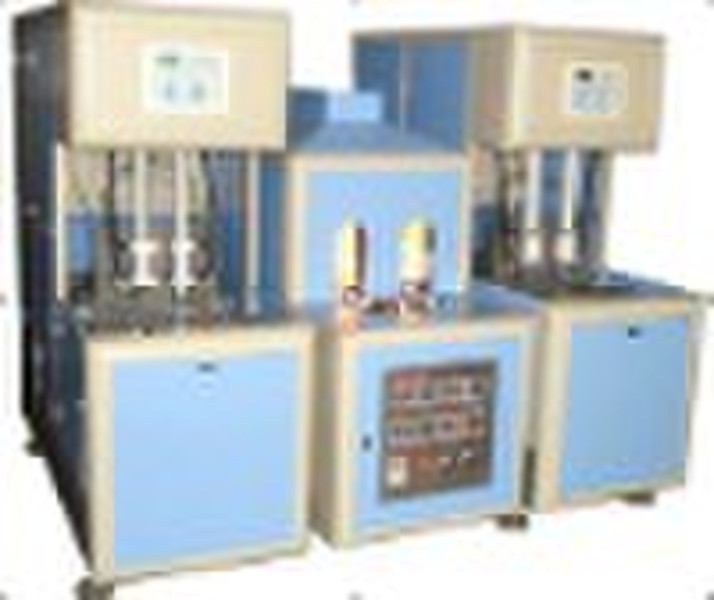

HY-B-II semi-automatic bottle blow molding machine

Specification: HY-B-II semi-automatic bottle molding machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine. The machine can be operated in the step-by-step mode and the semi-auto mode. The machine is small with low investment , easy and safe to operate Main parameter: Technical parameter NameItemUnitDetailsBlowing machineDimension mm1600*600*1610mmWeight kg500Bottle volume (max) ml2000Bottle volume (min) ml50Bottle Neck Diameter (max) mm40Bottle Neck Diameter (min) mm18Body Diameter (max) mm125Body Height( max) mm420Number of Cavities mold2Production output pcs/h1600-1800BPHClamping force T5.756KNMold thickness mm200maxMold width mm360x390Space between Tie-bars mm120-220Diameter of Tie-bars mm63Scope of Tie-bars mm405Mold stroke mm160Stretching stroke (max) mm420Working pressure Mpa0.8-1.0MpaBlowing pressure Mpa2.0-3.0MpaVoltage/Power V/KW220V/1KWWeight Kg500Pre-heaterDimension mm1870*630*1450mmWeight kg260Voltage/Power V/KW380V/14KW
