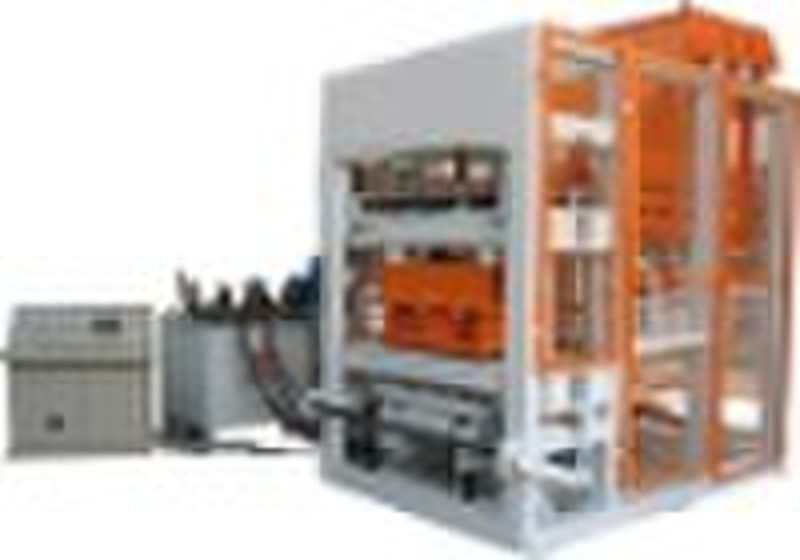

concrete brick making machine

Main technology parameters QTY 4-A Max.pressure 40T Hydraulic engineering power 22 Oil pump flow 63L Excitation force 50KN(adjustable) Vibrating frequency 47HZ(adjustable) Design molding speed 4 times/min Production per Day 10 working hours Hollow brick 8500Porous brick 26000Standard brick 55000 Total power 25KW Pallet size 920×550×40mm Control mode PLC QTY4-B Max.pressure 40T Hydraulic engineering power 22+4KW Oil pump flow 63L Excitation force 50KN(adjustable) Vibrating frequency 47HZ(adjustable) Design molding speed 4 times/min Production per Day 10 working hours Hollow brick 9600Porous brick 28800Standard brick 62400 Total power 25KW Pallet size 920×550×40mm Control mode PLC QTY6 Max.pressure 70T Hydraulic engineering power 22KW×4KW×2 Oil pump flow 63L 15L Excitation force 20-50KN(adjustable) Vibrating frequency 15-47HZ(adjustable) Design molding speed 4 times/min Production per Day 10 working hours Hollow brick 14400Porous brick 45000Standard brick 72000 Total power 38.6KW Pallet size 1060×820×40mm Control mode PLC
